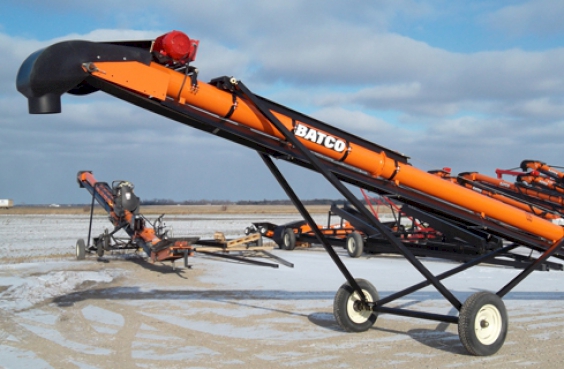

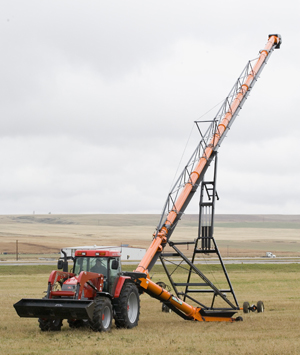

Specialty crops, seed and some commodities are very susceptible to impact damage caused by conventional grain handling systems. A Batco Belt Conveyor minimizes impact damage and helps protect grade quality and germination performance of seed.

Batco's unique design requires half the horsepower of screw augers, saving energy and freeing up larger tractors for other uses.

All Batco Conveyors are designed and built for high-capacity and performance at a maximum operating angle of 30°. Capacity increases as the angle of elevation decreases. (See specifications for model performance ratings.)

Self-cleaning feature enables fast changeover to other commodities without contamination.

Engineered, designed and built for rugged, long-lasting performance with heavy-duty features like our quality 2-ply rubber belting rated at 3,000 hours.

Designed for harsh northern winters, the system drives off the grip side of the belt, eliminating slippage.

Patented design made from 22 oz canvas tarp material. Spring loaded to provide gentle cushioning. Collapses to 7 1/2" clearance.

Features:

• Clean convenience
• Gente handling
• High capacity
• Low horsepower
• Low maintenance/log wear characteristics

| 2400 Series

• Capacity rated up to 14,000 bph
• Available in lengths from 65' to 120'
• 14" diameter, 12-gauge tube

| 2000 Series

• Capacity rated up to 9,000 bph
• Available in lengths from 35' to 120'
• 14" diameter, 12-gauge tube

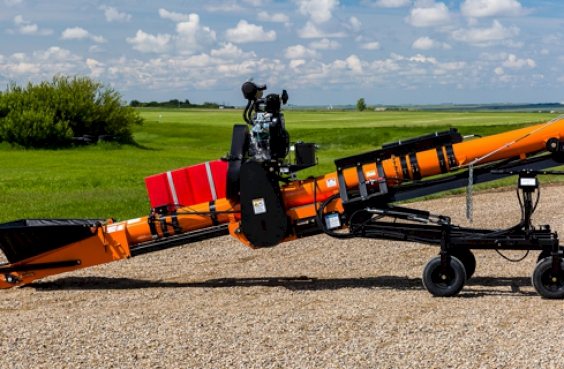

| 1500 Series

• Capacity rated up to 6,000 bph
• Available in lengths from 35' to 100'
• 10" diameter, 14-gauge tube
• 12-gauge tube for the first 30' on the 55' to 100' models

| 1300 Series

• Capacity rated up to 3,500 bph
• Available in lengths from 35' to 55'
• 10" diameter, 14-gauge tube
